Installation Guide | macOS

The following guide will help you install and run both PiecesOS and the Pieces for Developers Desktop Application quickly and easily.

Recommended Installation Method

Click the buttons below to download Pieces for your macOS device.

Download — PiecesOS & Pieces Desktop App (ARM)

macOS 13.0 (Ventura) or higher required

Download — PiecesOS & Desktop App (Intel)

macOS 13.0 (Ventura) or higher required

PiecesOS is a required Core Dependency. Please install it alongside the Pieces Desktop App.

Install the PKG

Once you’ve downloaded the correct .pkg file, it’s time to run the installer.

Open the Installer

Double-click the .pkg file to launch the macOS installer.

Follow the On-Screen Prompts

Navigate through the introduction screen, select the install location, and enter your administrator credentials if prompted, then click Install Software.

System Requirements

There are (2) requirements for installing Pieces on your macOS device:

Compatible OS Version—macOS 13.0 (Ventura) or higher
Compatible installer for your device’s architecture—Apple Silicon (ARM) or Intel

Click here for a quick guide on determining your OS type, and here for how to check your device’s CPU architecture.

Component	Minimum	Recommended	Notes
CPU	Any modern CPU	Multi-core CPU	Avoid dual-core processors—aim for at least a 4-core CPU.
RAM (Local Mode)	8 GB total system RAM with 2 GB free	16 GB total system RAM or more	Applies when PiecesOS is running locally.
RAM (Cloud Mode)	8 GB total system RAM with 1 GB free	16 GB total system RAM or more	Applies when PiecesOS is running in cloud mode.
Disk Space	2 GB minimum (1 GB for PiecesOS + 0.5–1 GB for data), with at least 4 GB free	8 GB with at least 6 GB free or more	Ensure additional free space for data storage and future growth.

Alternative Installations

If you cannot use the .pkg installer for any reason, you can install PiecesOS and the Pieces Desktop App using standalone .dmg files or by using Homebrew through your Mac’s terminal.

via DMG (Apple Silicon / M-Series / ARM)

Install both PiecesOS and the Pieces Desktop App in order by clicking the download cards below for your ARM device.

Download — PiecesOS (DMG / ARM)

Step 1: Download PiecesOS

Required Dependency

macOS 13.0 (Ventura) or higher required.

Download — Pieces Desktop App (DMG / ARM)

Step 2: Download the Desktop App

Recommended Method

macOS 13.0 (Ventura) or higher required.

via DMG (Intel)

Install both PiecesOS and the Pieces Desktop App in order by clicking the download cards below for your Intel device.

Download — PiecesOS (DMG / Intel)

Step 1: Download PiecesOS

Required Dependency

macOS 13.0 (Ventura) or higher required.

Download — Pieces Desktop App (DMG / Intel)

Step 2: Download the Desktop App

Recommended Method

macOS 13.0 (Ventura) or higher required.

Install the DMG

After downloading the correct .dmg file, it’s time to install the Pieces Desktop App.

Open your Downloads folder (or wherever you saved the installer) and look for the .dmg file you just downloaded (e.g., Pieces.dmg).

Mount the DMG

Double-click the .dmg file to mount it.

Drag & Drop into Applications

Drag the application icon from the mounted .dmg window into your Applications folder.

Eject the DMG

Go back to Finder, right-click the mounted image, and select Eject to unmount it.

Install Using Homebrew

Alternatively, you may opt to install Pieces via Homebrew in your terminal.

Installing via Homebrew

You can install PiecesOS manually using Homebrew from your device’s terminal.

To do so:

Ensure Homebrew is installed on your system.
Run brew install --cask pieces in your terminal and press return to install the Pieces brew package.

This command installs both the Pieces Desktop App and PiecesOS cask. If prompted, enter your administrator password.

Wait for installation to complete—Homebrew will download and install the necessary files.

Once it’s done, you’ll see a message indicating successful installation.

Post-Installation Tips

Read the documentation below for some tips and information to make sure you’re up and running with the latest version(s) of PiecesOS and the Pieces Desktop App, as well as steps to uninstall Pieces software from your Apple device.

Updating

The Pieces Desktop App automatically downloads and installs new updates.

You can also manually check for updates to PiecesOS and the Pieces Desktop App by clicking the Profile icon nested in the Search Bar at the top of your Pieces Desktop App view, then selecting Check for Desktop App Updates or Check for PiecesOS Updates.

Uninstalling

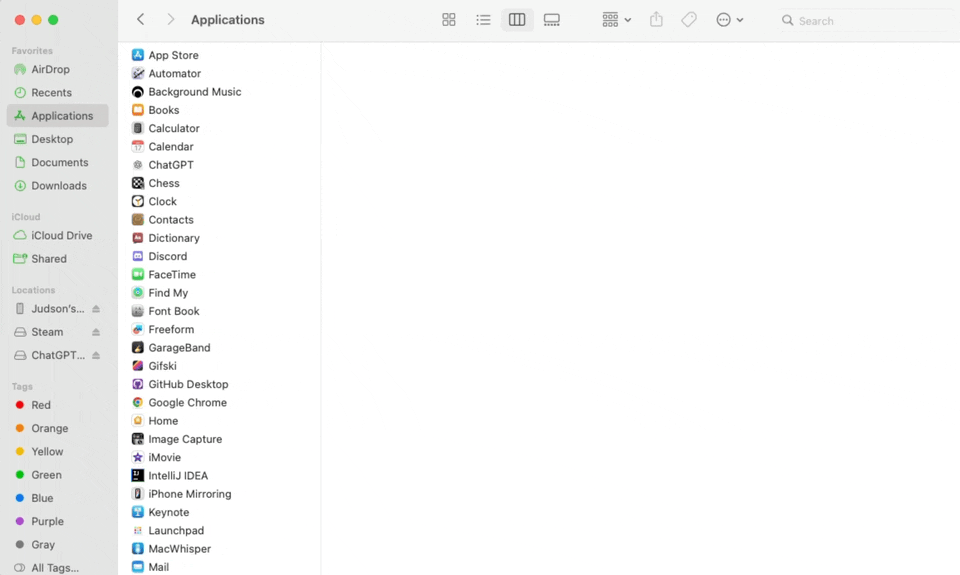

On your macOS device, navigate to Finder, then select Applications.

Scroll or search until you find both Pieces and PiecesOS. Right-click on these two applications and select Move to Trash.

Additional Resources

Click here for additional documentation on troubleshooting or reach out to support.
